Mouse Event

The Mouse Event behavior listens to events from an external hardware mouse or trackpad and triggers behaviors once an event has been received.

⚠️ Warning: This feature is only fully supported on iOS 14.0 and above.

Event Type	Description
On Left Click	Trigger an event when a left click has been triggered. By default, this triggers when pressed but this can be changed to trigger on release.
On Right Click	Trigger an event when a right click has been triggered. Pressing with two fingers on an Apple supported trackpad will be treated as a right click. By default, this triggers when pressed but this can be changed to trigger on release.
On Move	Trigger an event when the mouse moves. This outputs the mouse position and the raw amount it has moved on the x and y axes.
On Connection	Trigger an event when a hardware mouse or trackpad is connected.
On Disconnection	Trigger an event when a hardware mouse or trackpad is disconnected.

Output Fields	Description
x	The current horizontal position of the mouse in screen space at the time the event was received. Units are in meters.
y	The current vertical position of the mouse in screen space at the time the event was received. Units are in meters.
dx	The raw amount the mouse has moved horizontally.
dy	The raw amount the mouse has moved vertically.
vendor	The vendor name of the external mouse or trackpad. e.g "Magic Keyboard".

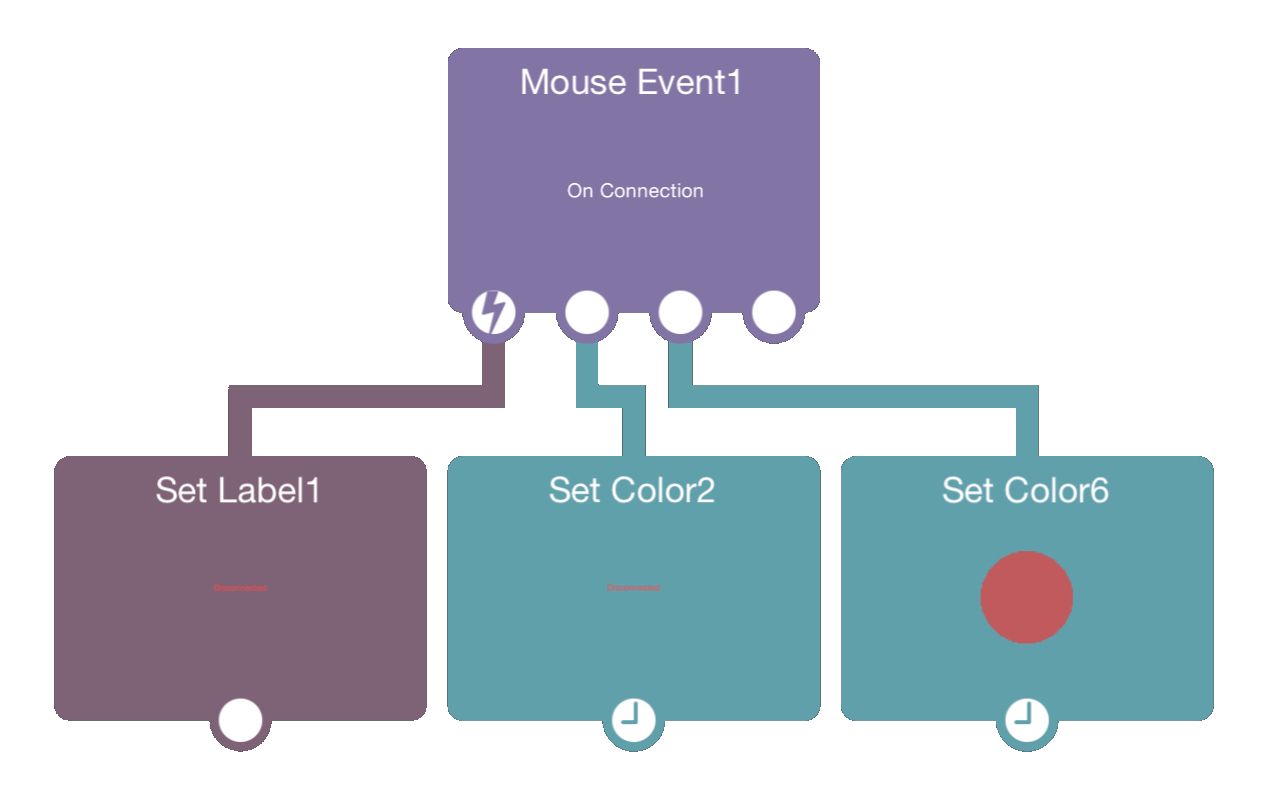

Example: Successfully Connected

When a mouse has been successfully registered, change the color of an object and display information about the mouse to let the user know that the mouse has connected.

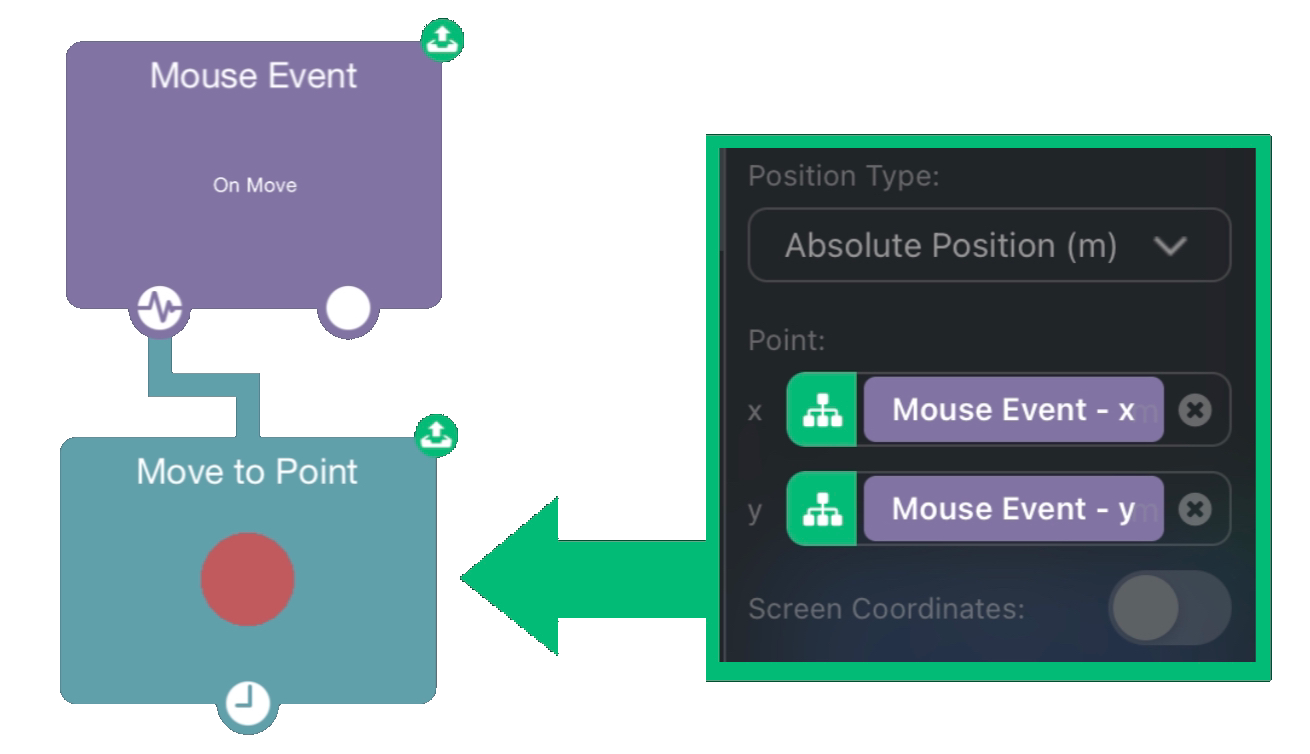

Example: Mouse Pointer

Every time the mouse moves, an object moves to the position of the mouse, making it appear that the mouse is controlling the object.
