Interpolate Value

The Interpolate Value behavior returns a value between a start and end point using a specified easing tween.



Property Description
Tween

How to interpolate between the two values. By default, this will interpolate linearly.

Start

The starting value where the interpolation point is 0%.

End

The ending value where the interpolation point is 100%.

Interpolation Point

A percentage that determines where to interpolate between the start and end point. 50% would be halfway between the two points.

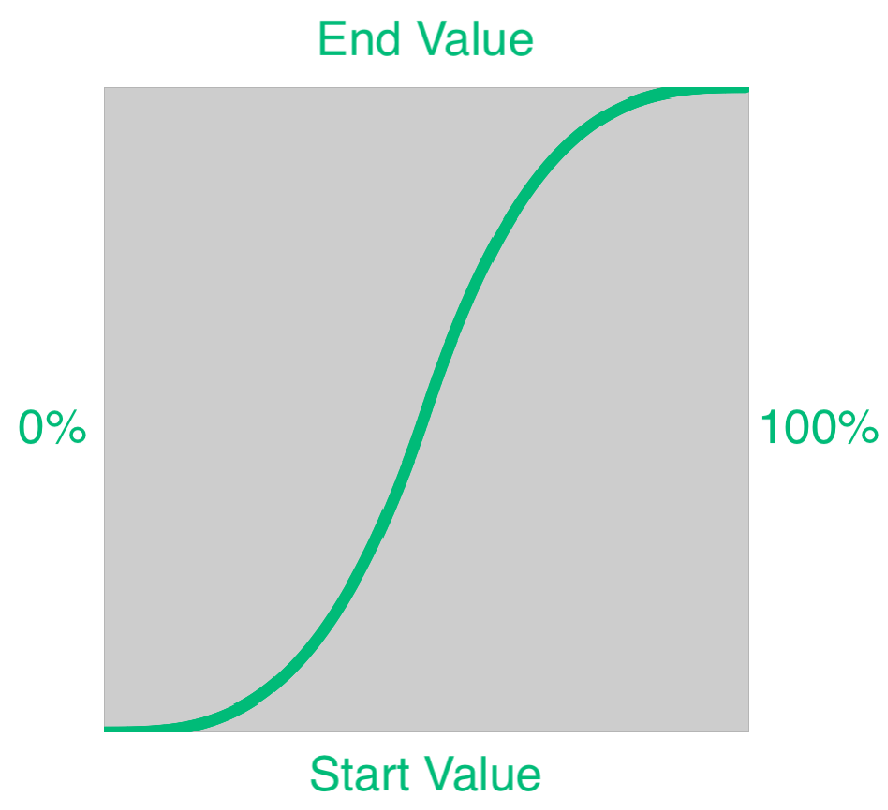

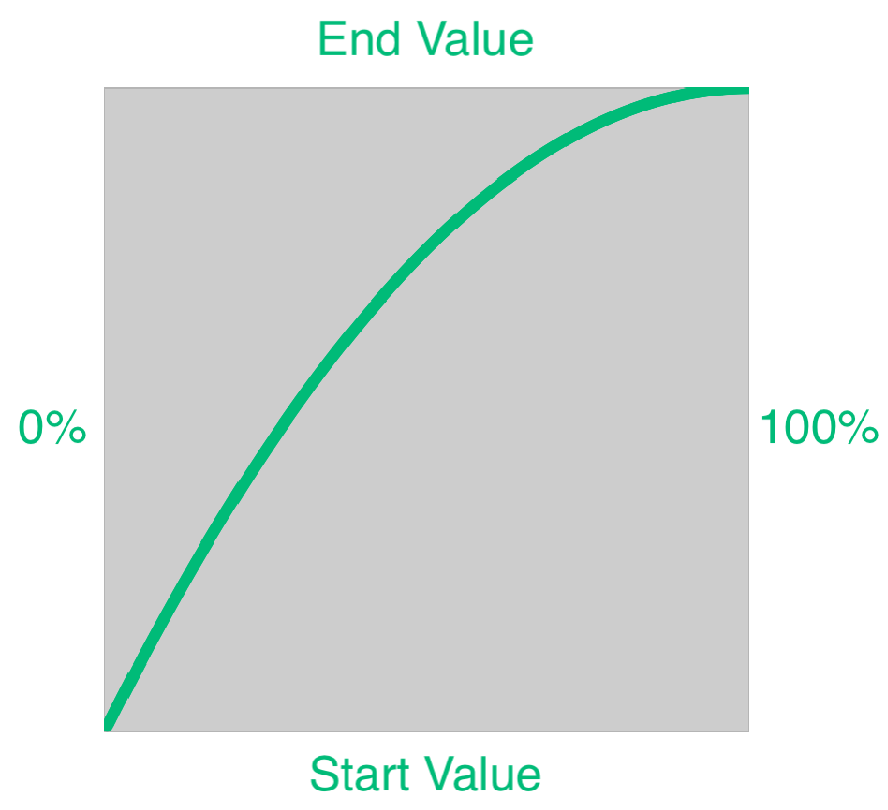

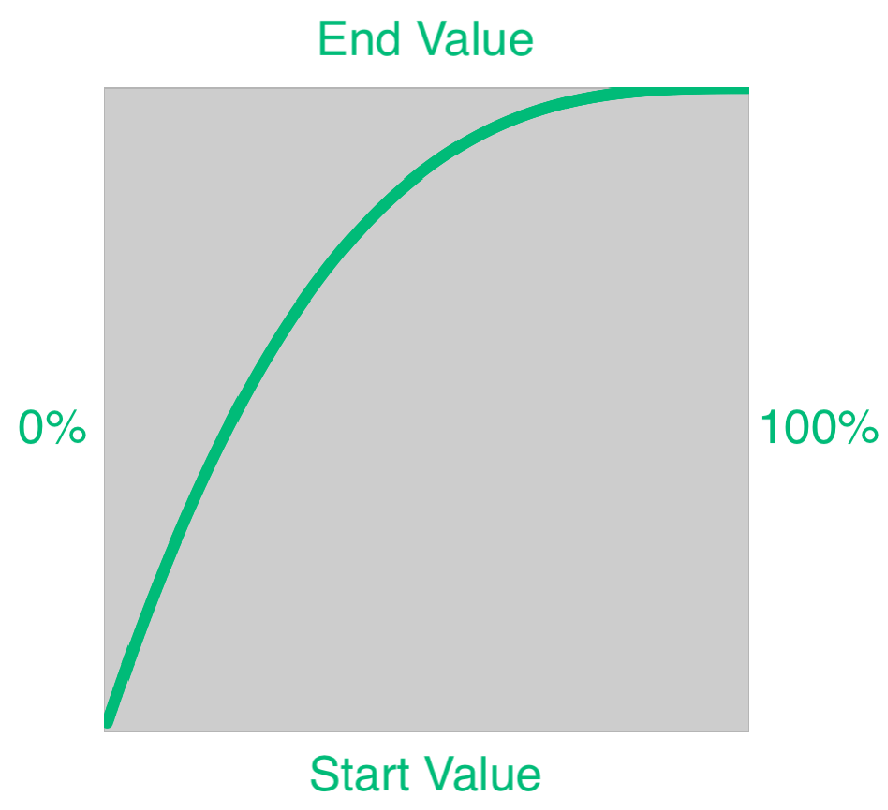

Easing Tween Graph

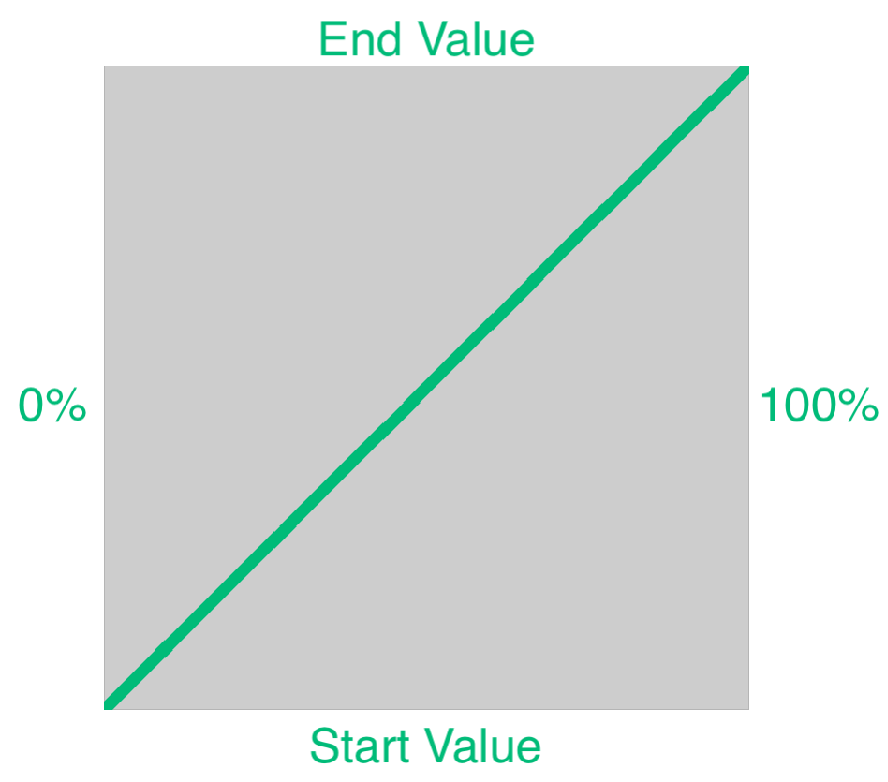

Linear

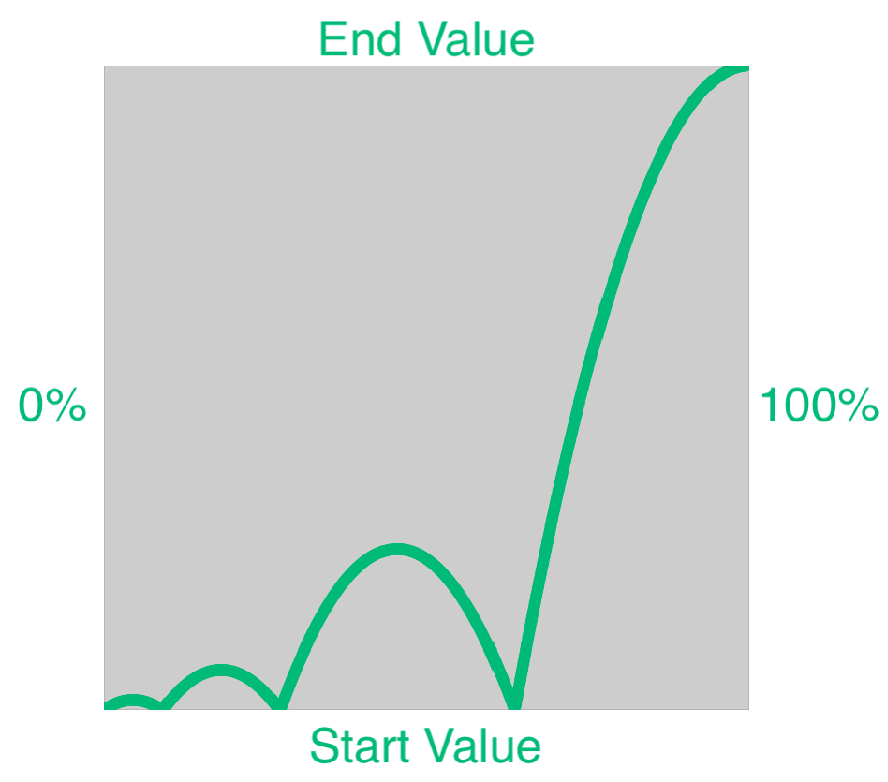

In Bounce

Out Bounce

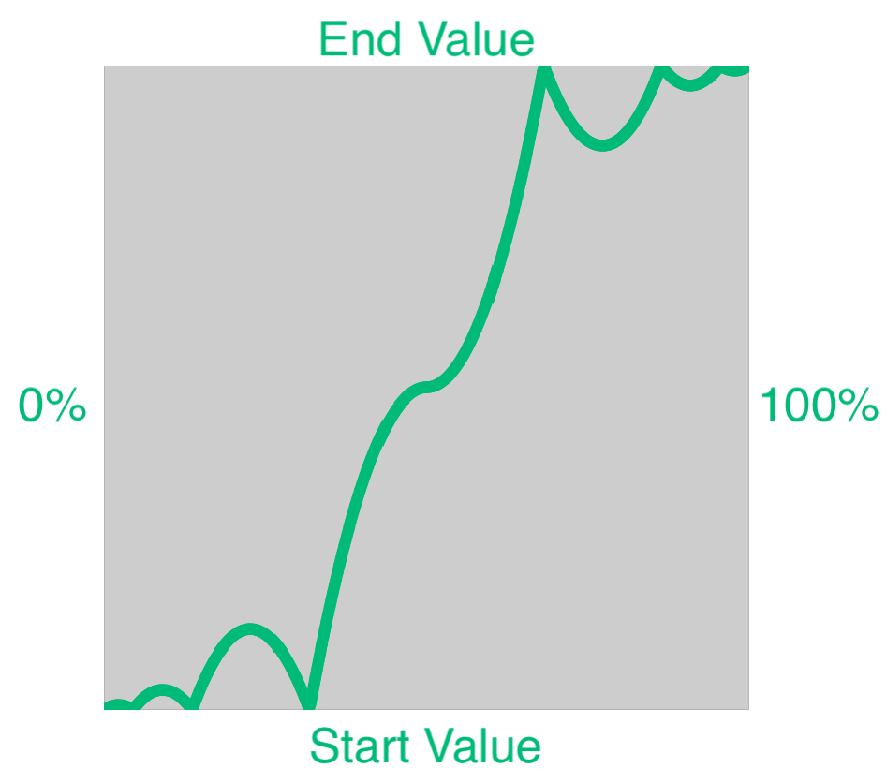

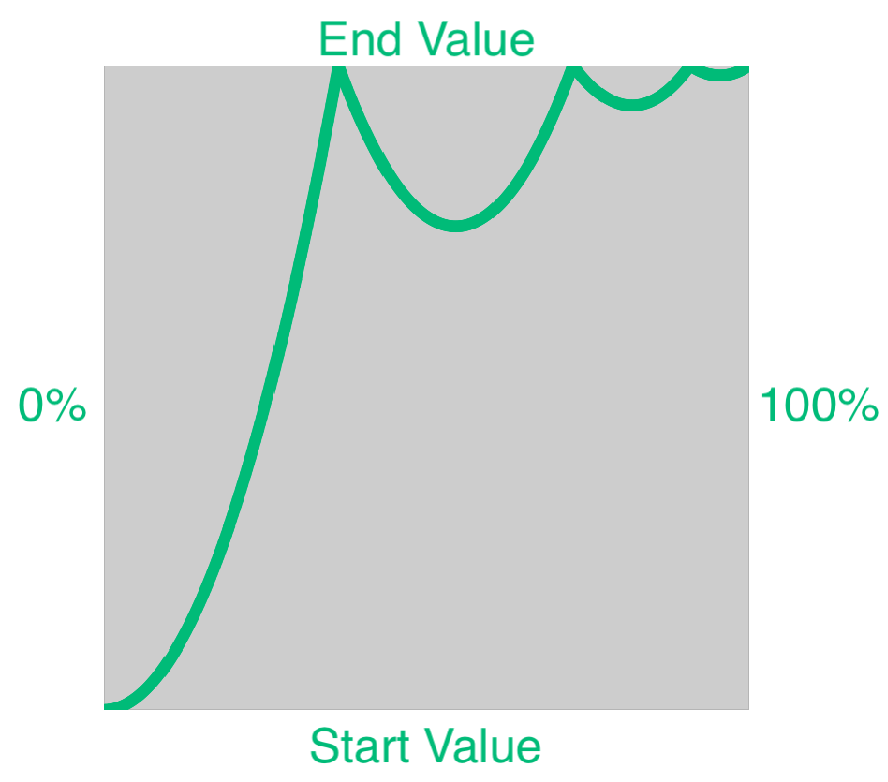

In Out Bounce

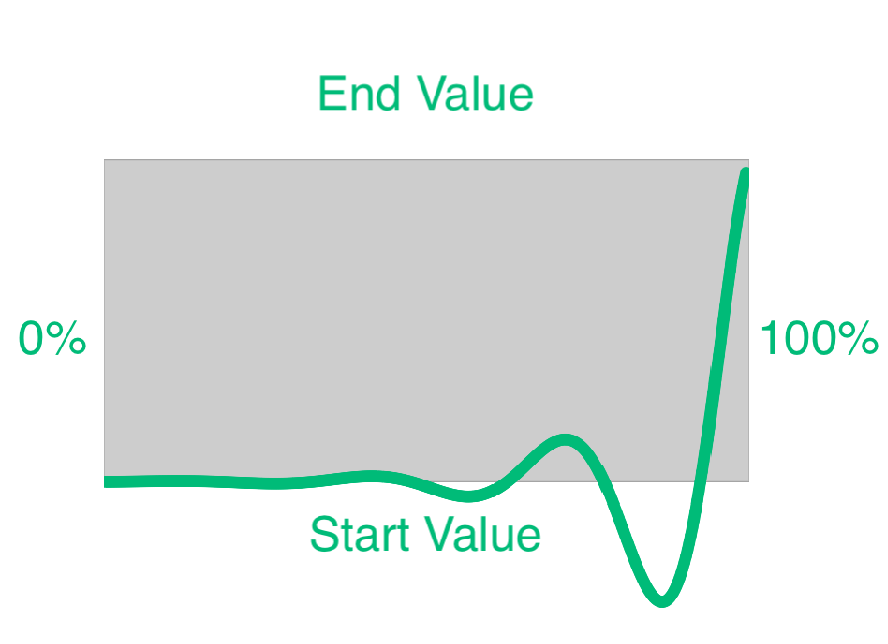

In Elastic

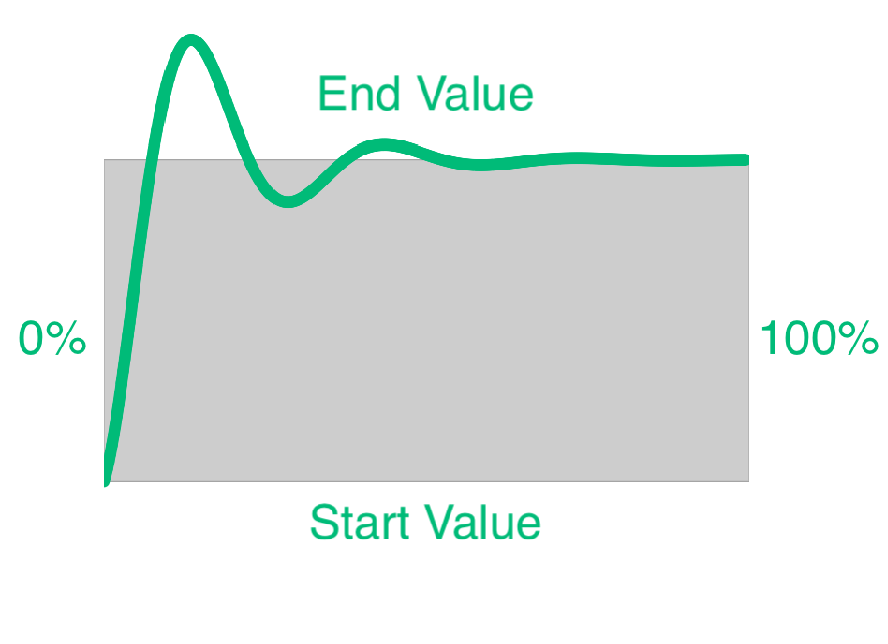

Out Elastic

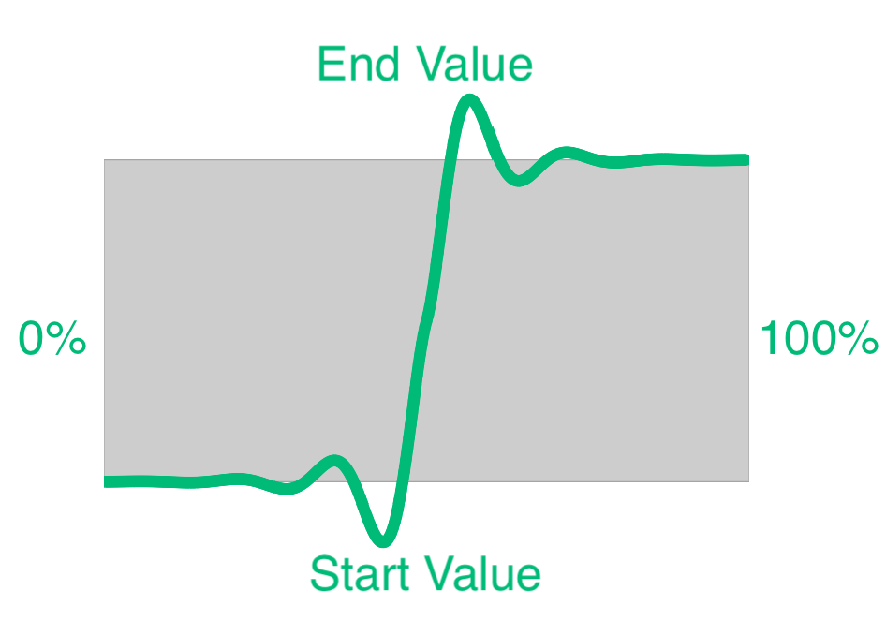

In Out Elastic

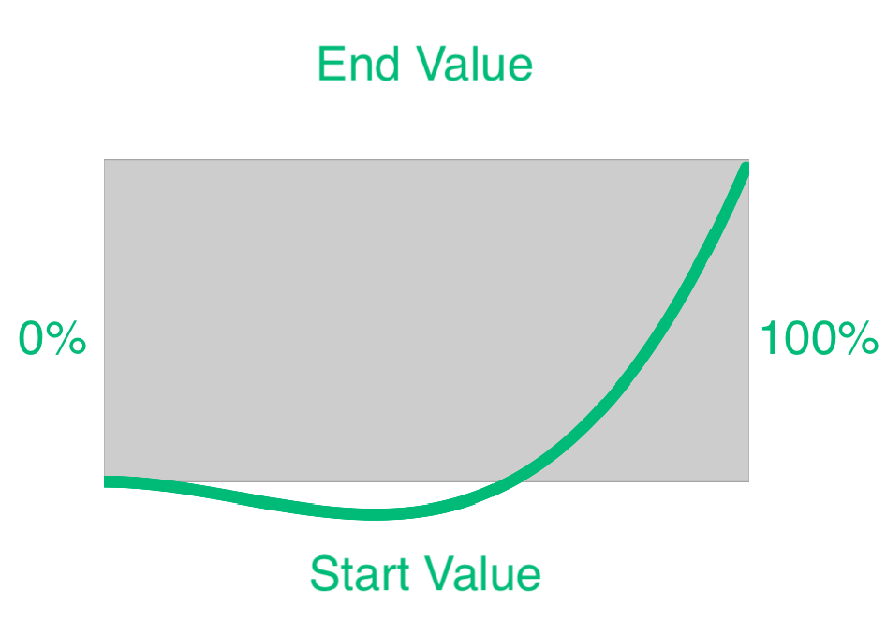

In Back

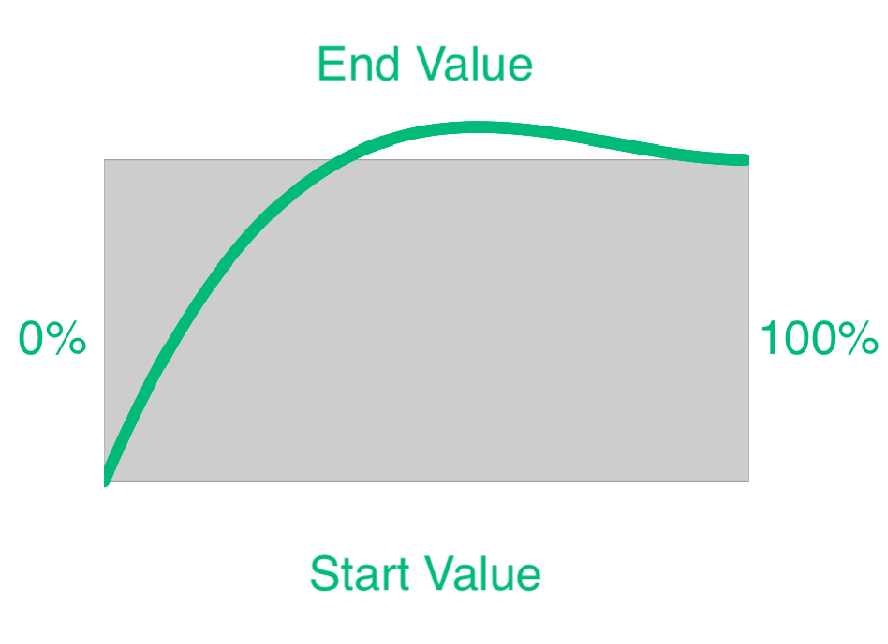

Out Back

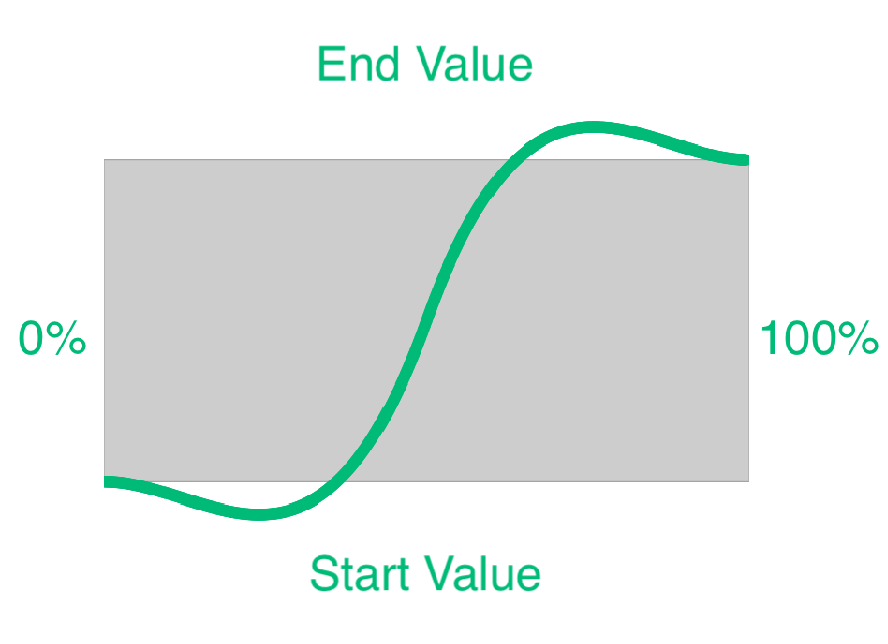

In Out Back

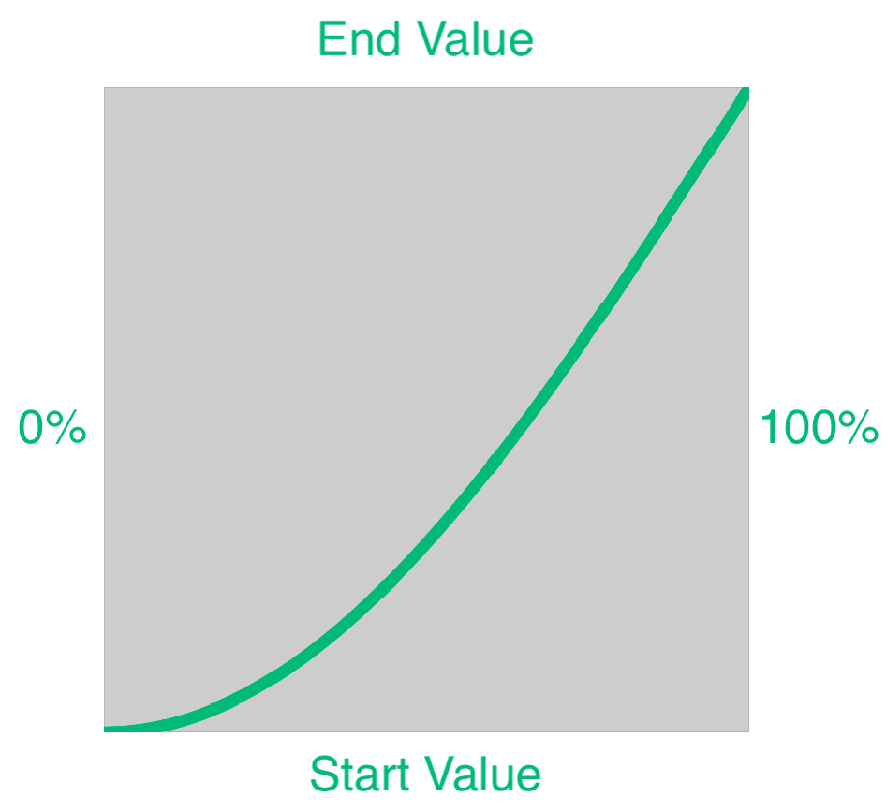

In Sine

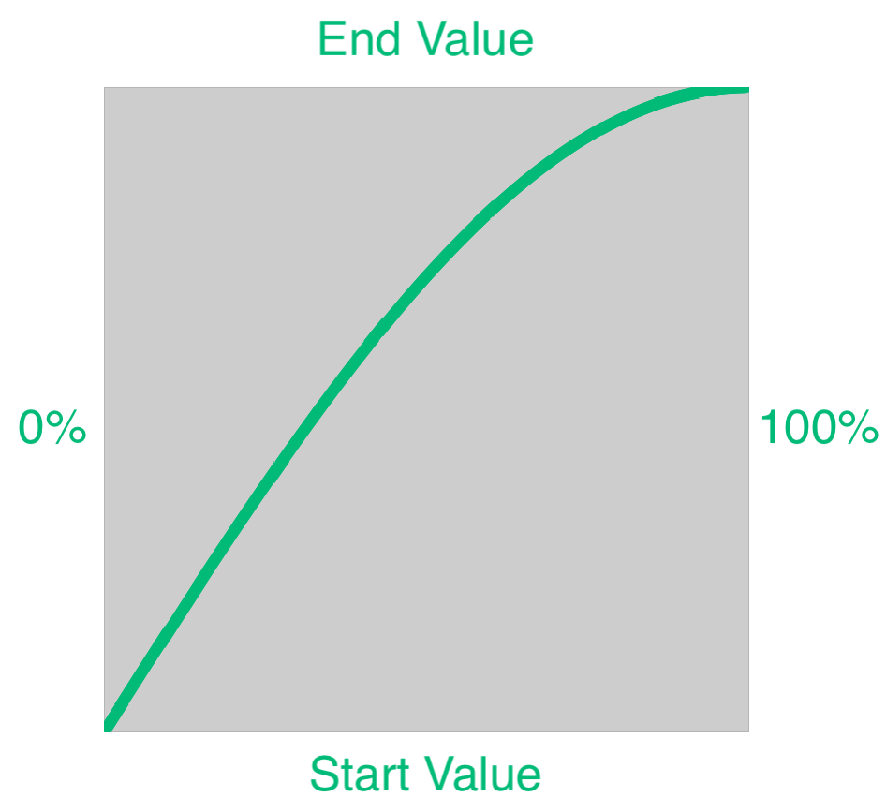

Out Sine

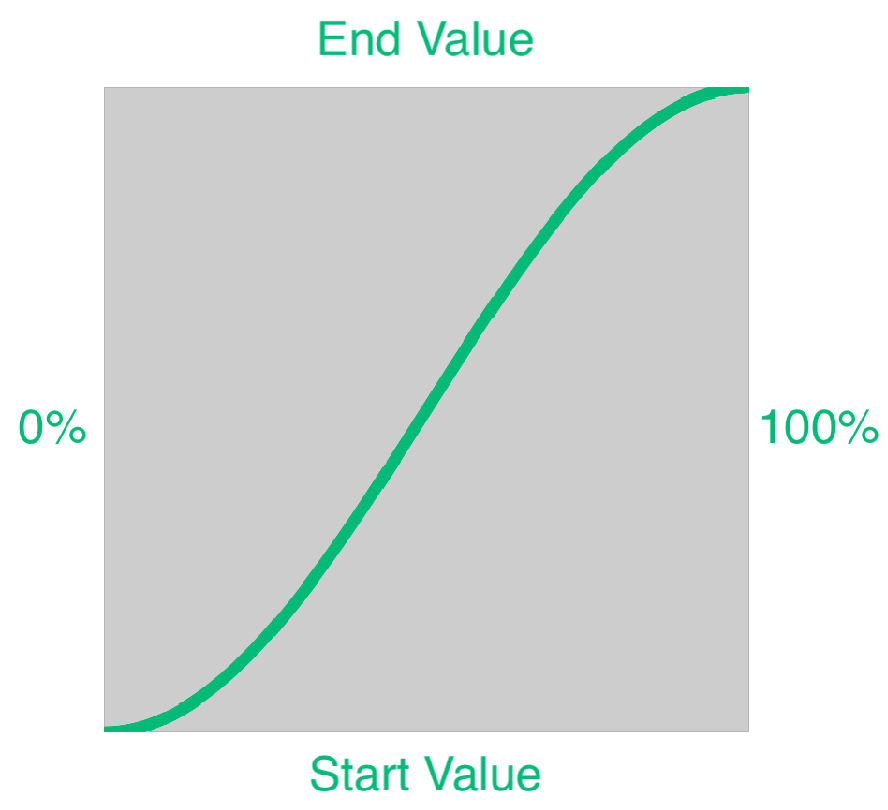

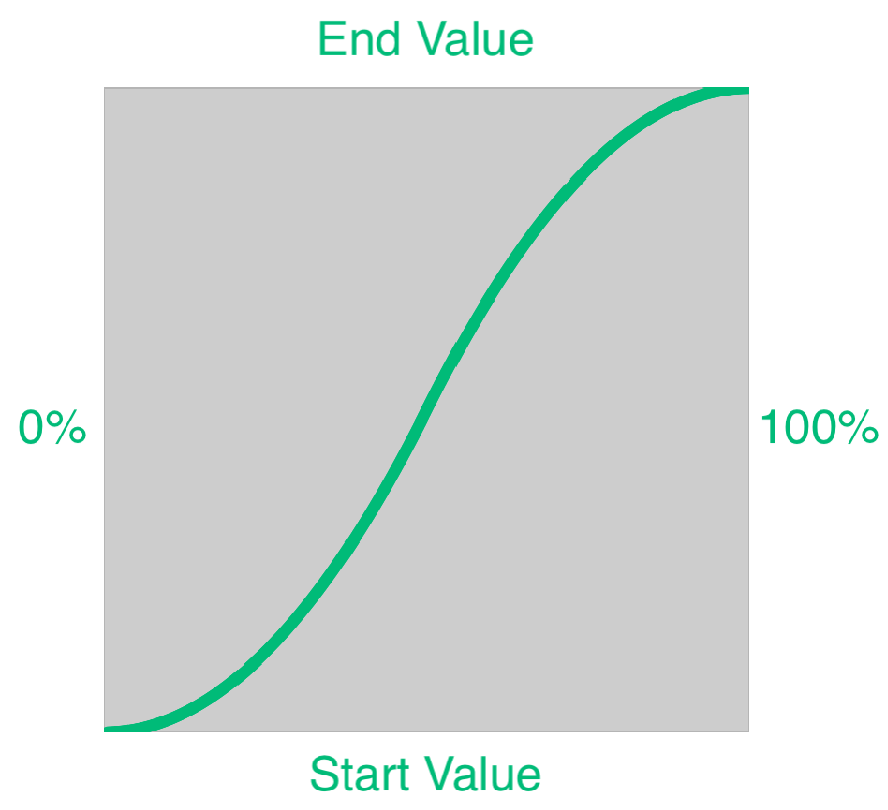

In Out Sine

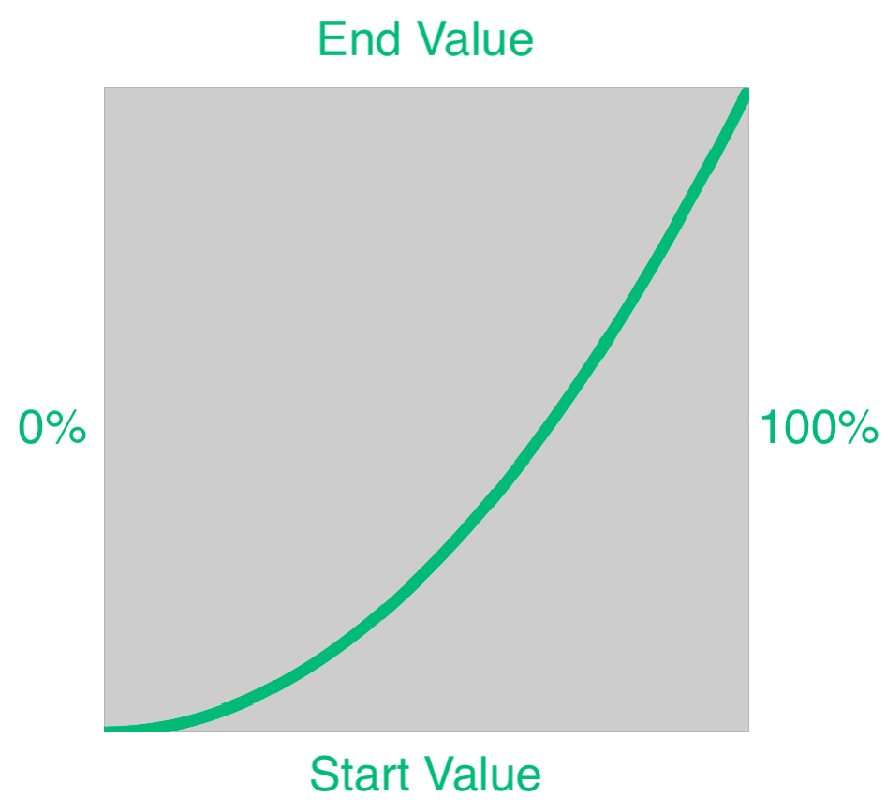

In Quadratic

Out Quadratic

In Out Quadratic

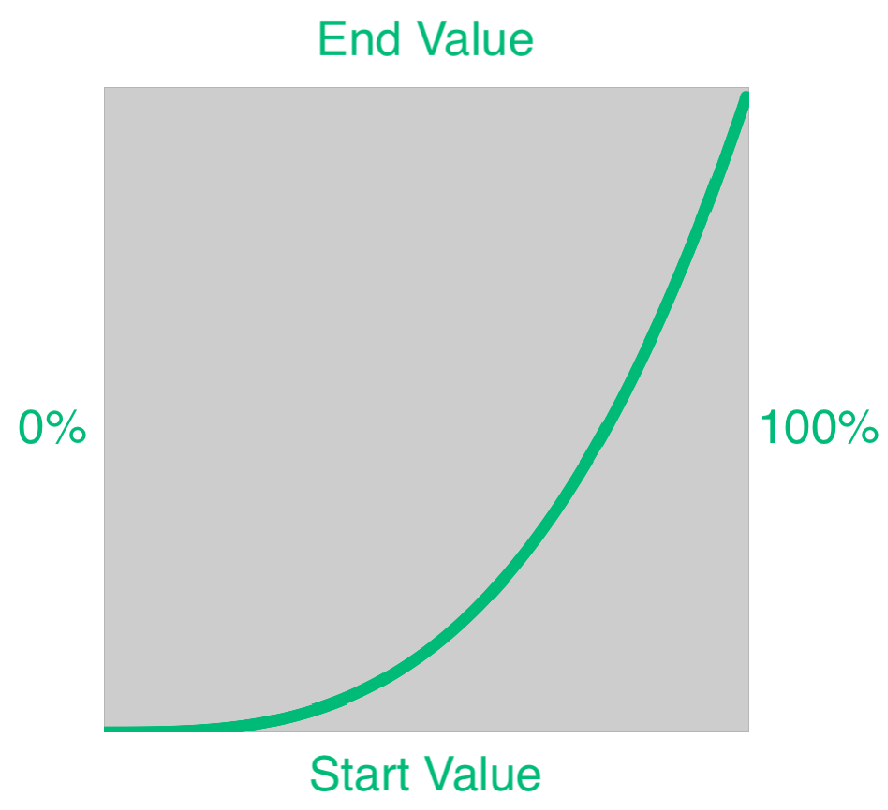

In Cubic

Out Cubic


In Out Cubic

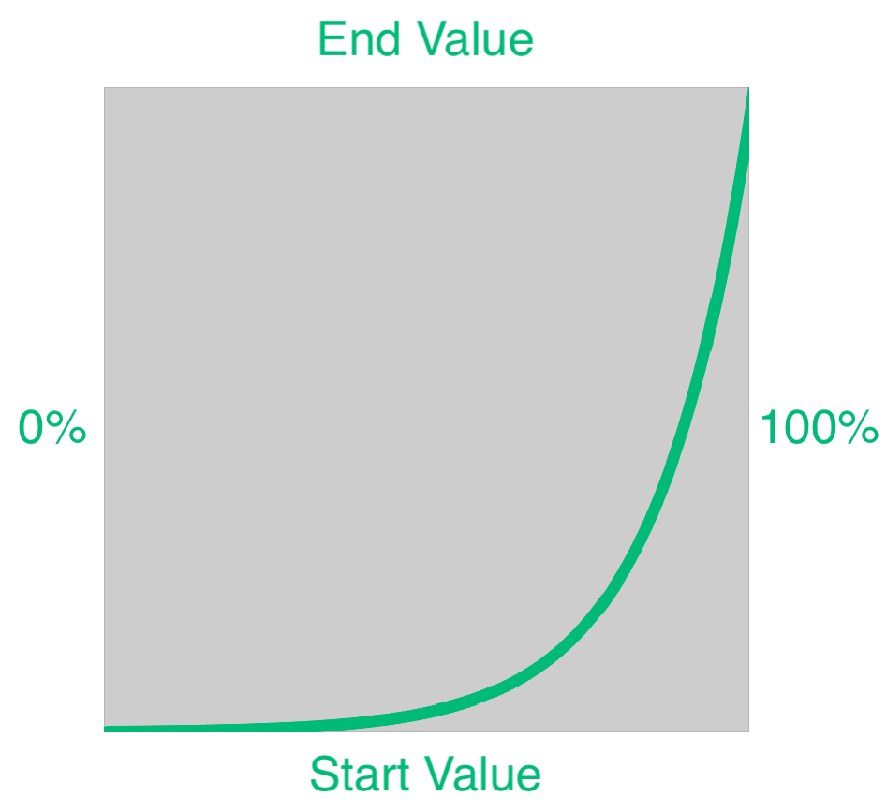

In Exponential

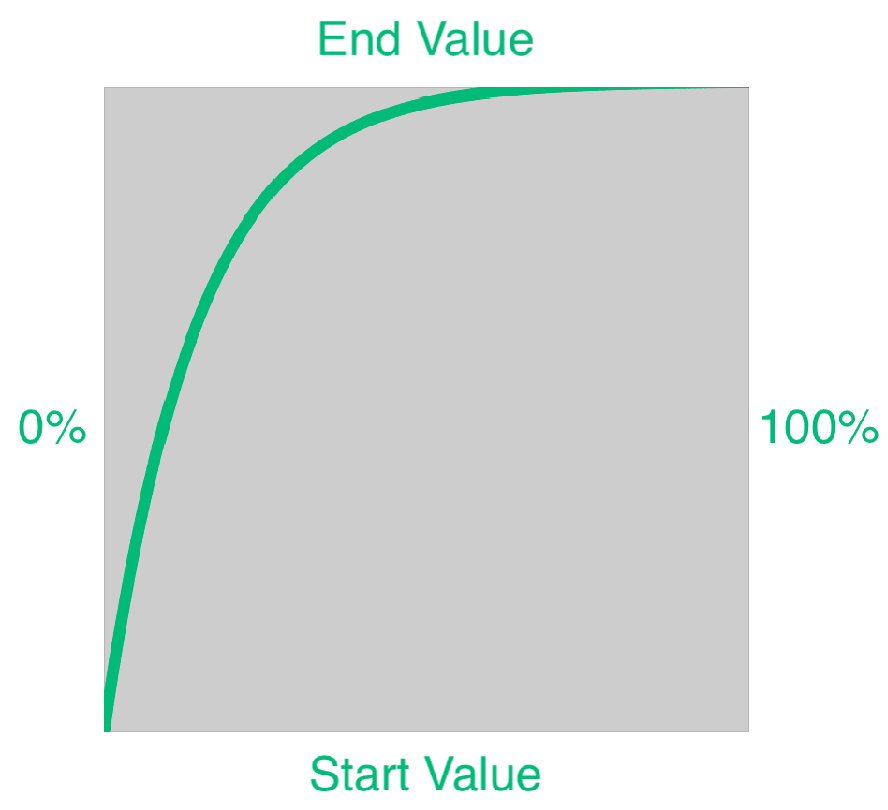

Out Exponential

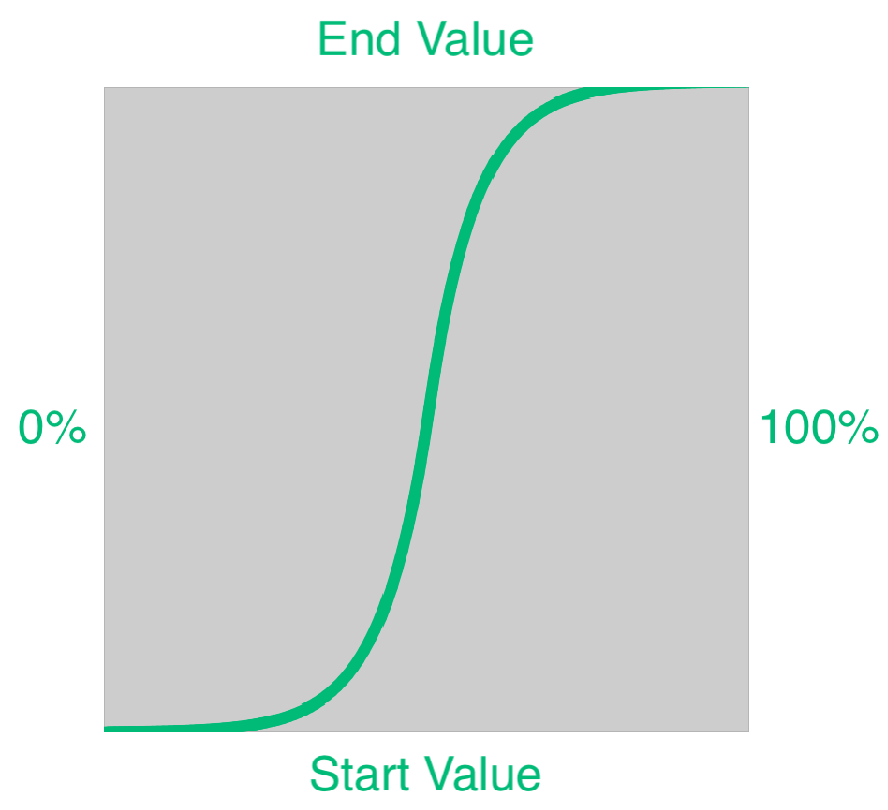

In Out Exponential



Output Fields Description
result

The output value from the function.
