Start Trail

Description

The Start Trail behavior will emit a trail effect from an object. When you want this effect to stop, you can disable it via Set Behavior State or use the Stop Visual Effects behavior.

This behavior will trigger an event immediately.

⚠️ EXPERIMENTAL: Currently, there are some issues with the trail effect where it can visually warp at weird angles when its parent object is making sharp turns. This behavior may change in the future to fix all visual bugs from this effect.



Properties

Triggers Immediately

Object A

This is the object you want to apply the trail effect to.

Anchor X

The X-axis position where on a specific object the particle emitter will be placed. This is automatically populated when you select Object A.

Anchor Y

The Y-axis position where on a specific object the particle emitter will be placed. This is automatically populated when you select Object A.

Fade Time

How long a segment in the trail should last for in seconds before it completely fades away.

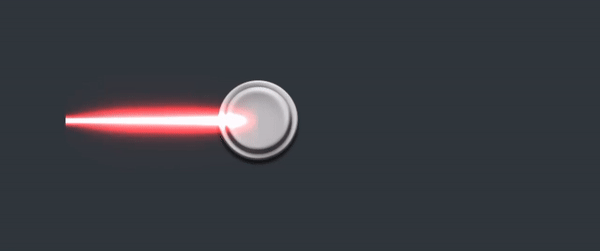

1s Fade Time:

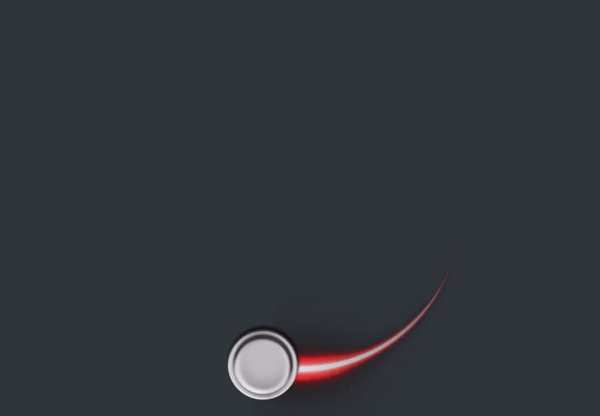

2s Fade Time:


Minimum Segments

The minimum amount of segments the trail should contain.

Stroke

The thickness of the trail.

Color

The color of the trail to use.

Graphic

The graphic to use for the trail.

Blending Mode

The blending mode you want to apply to the trail. Note that blending can appear different on trails compared to objects.

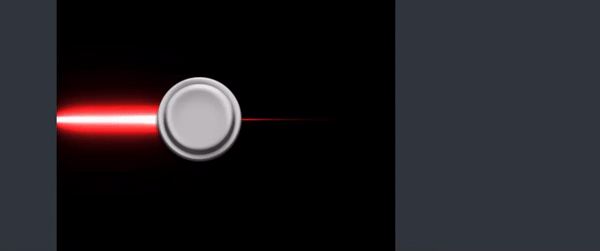

Blending Mode: Normal

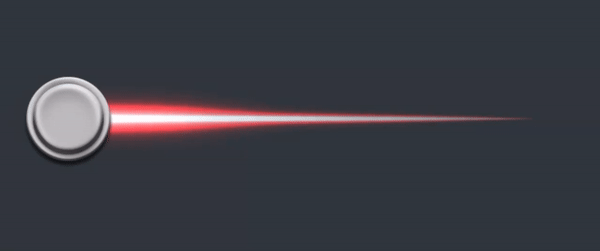

Blending Mode: Dodge

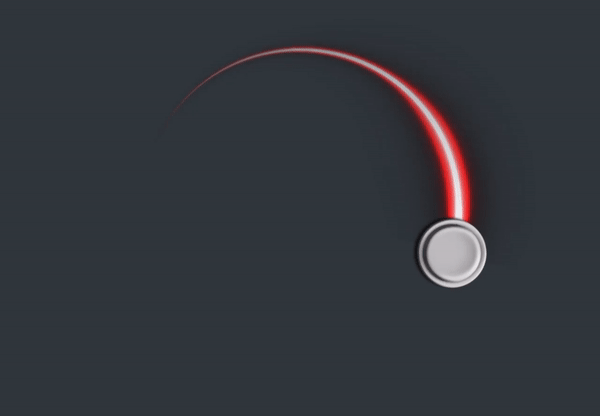

Blending Mode: Burn

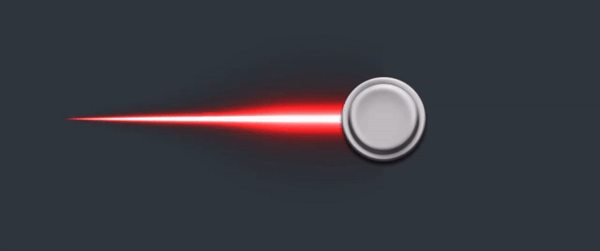

Blending Mode: Screen




Blending Mode: Disable Blending


Fast Mode

When enabled, the trail runs faster with the cost of being less precise.

On Top

By default, the trail is displayed under the object. When this is toggled on, the trail will be displayed on top of the object.

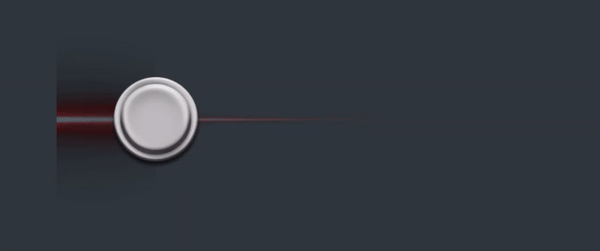

On Top: Enabled

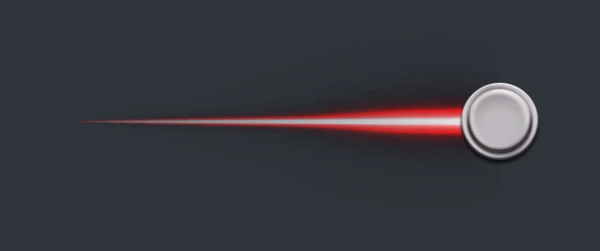

On Top: Disabled


Fade to Transparent

By default, the trail's opacity will fade to transparent. When this is toggled off, the trail's opacity will not fade to transparent.

Always Add Segments

By default, the trail temporarily stops adding new segments when the trail is not moving.

When this is toggled on, the trail will always add new segments, making the trail consistently update its path.



Outputs

Object A

The object ID used in this behavior.



Examples

You can use this behavior to have a rainbow trail emitting from the player object.



Related

Start Particles

Stop Visual Effects
